Chassis - 1949-52 Chevrolet Car (Art Morrison). Bare With Suspension

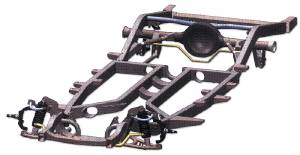

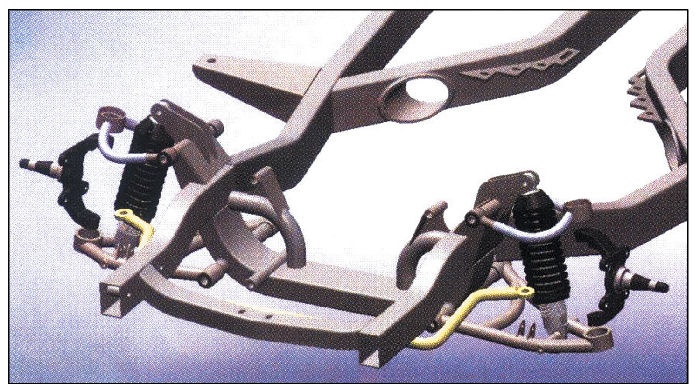

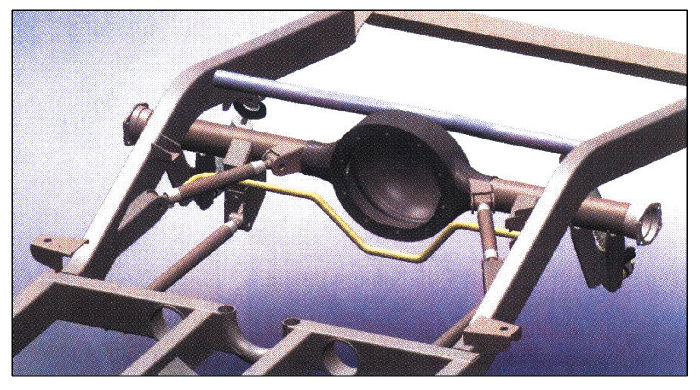

This is a Chevrolet chassis car frame by Art Morrison it is bare with suspension- 1949-52 Includes frame, with 3" exhaust holes, uncoated upper and lower control arms, spindles, power rack and pinion, front and rear sway bars, 9" housing, triangulated 4-bar links and Strange adjustable front and rear coil-over shocks with springs. A remarkable device called a "Faro Arm" which literally "traced" every square inch of the OEM Chevrolet frame and was employed to transmit X-Y-Z data directly into the computer. This eliminates any chance of human error, and guarantees that the body of your 1949-52 Chevrolet will fit superbly. Up front, Morrison's engineering team has developed a sophisticated Independent Front Suspension (IFS) that employs tubular steel control arms, adjustable coil-over shocks, a beefy sway bar and AME/Wilwood front spindles. An AGR Power Rack and Pinion (15:1 or 20:1 ratio) handles the steering. The chassis will also have motor mounts for the popular small block V8, its big block brother, or the new LS-series powerplants. Likewise, a wide variety of manual and automatic transmissions can be employed, including Powerglide, TH350, TH400 and 700R4 automatics, plus any 4-speed, Tremec TKO and T-56 6-speed, as well as Richmond 5 or 6-speed manual transmissions. With a wide variety of body styles that this chassis will work with, including the unique "fastback" sedans and elegant Bel Air hardtops, let your imagination take over! -Frame ships bare steel with light oil to protect from rust.

This part fits most 1949 1950 1951 1952 Chevrolet Cars; exceptions may apply. Please read the complete description to see if this part fits your specific vehicle and application.
